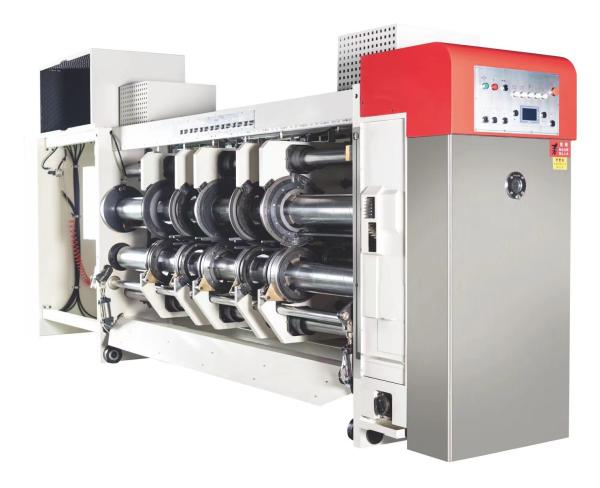

slotting die-cut machine

  • 1
  • 2

Brand Name : YH

Certification : ISO9001

Place of Origin : CHINA

MOQ : One Unit

Payment Terms : T/T

Packaging Details : wooden box

Contact Now

GYK-A 1370×2800

Leading edge type water-based ink corrugated cardboard four-color printing die-cutting machine

technical specification

slotting die-cut machine

Main Technical Parameters:

1. Inner width of the machine: 3000 mm

2. Design speed: 180 sheets/min

3. Maximum paper feeding size: 1300×2700 mm

4. Minimum paper feeding size: 400 mm

5. Maximum printing area: 1300×2640 mm

6. Color registration accuracy: ±0.5 mm

7. Standard plate thickness: 7.2 mm

8. Printable cardboard thickness: 3-11 mm

9. Maximum slot depth: 340 mm

10. Circumferential adjustment of the plate roller: 360° (in operation)

11. Axial adjustment of the plate roller: ±2.5 mm


China slotting die-cut machine factory

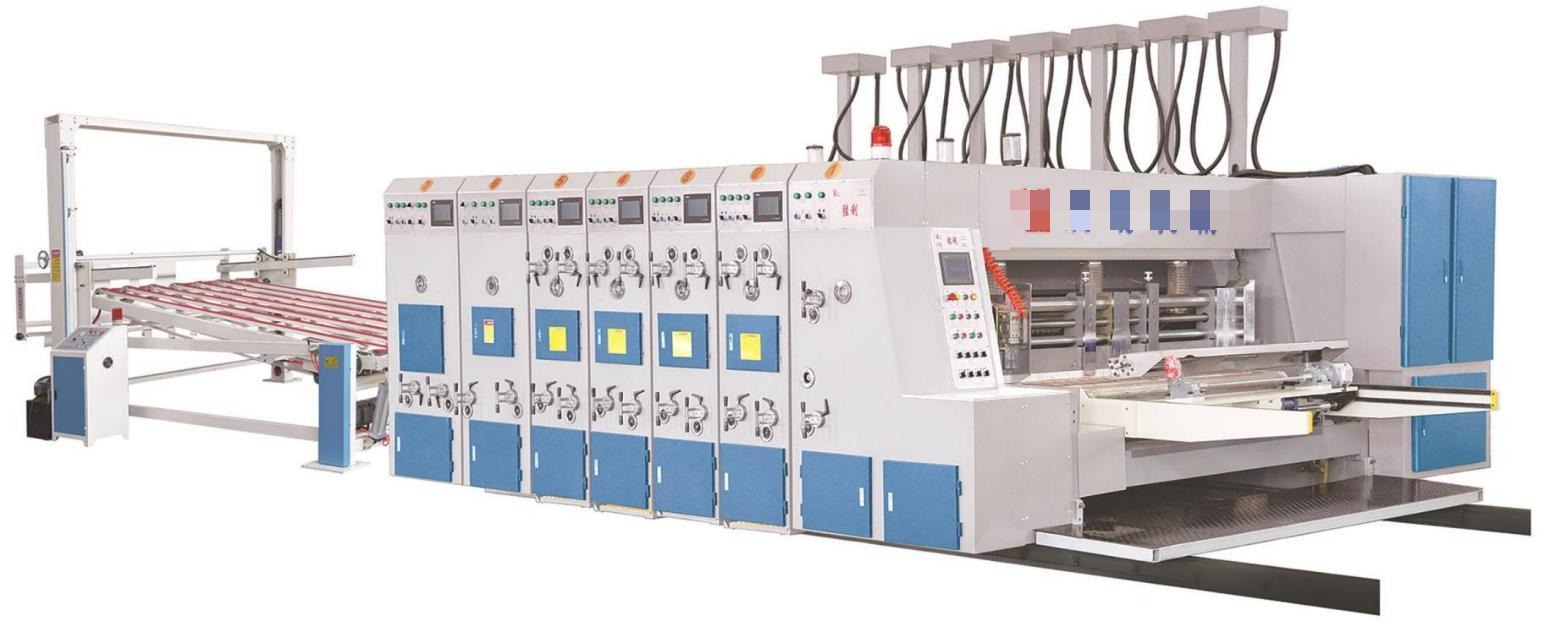

slotting die-cut machine Images
